Lithium-Ion Electric Pallet Jack – 3300 lb Capacity Walkie Pallet Truck (Model LPT33) Product Description
The MechMaxx LPT33 Lithium-Ion Electric Pallet Jack is a compact and efficient material handling solution designed for warehouses, loading docks, retail stockrooms, and distribution centers. With a 3300 lb load capacity and a fully electric drive and lift system, this walkie pallet truck provides smooth, quiet, and effortless pallet transport in tight workspaces.
Powered by a 24V 40Ah removable lithium-ion battery, the LPT33 offers reliable performance with minimal maintenance requirements. The quick-exchange battery system allows operators to replace the battery within seconds, reducing downtime and improving productivity during busy work shifts.
Its 45.3" × 27" forks are designed to handle standard pallets, while the compact frame and 55" turning radius make the pallet jack ideal for narrow aisles, trailers, and confined storage areas where forklifts may not fit.
Equipped with the industry-proven Curtis travel controller, the LPT33 delivers precise speed control, smooth acceleration, and stable performance even when carrying heavy loads.
Advanced Electric Drive System
The LPT33 is designed with a fully electric drive and lifting system that makes pallet handling faster and easier.
• 0.75 kW drive motor for smooth travel
• 0.5 kW lift motor for efficient lifting operations
• Quiet and energy-efficient performance
• Stable travel speeds for improved handling
Travel speeds reach up to 2.6 mph when loaded and 2.8 mph when unloaded, improving workflow efficiency in busy environments.

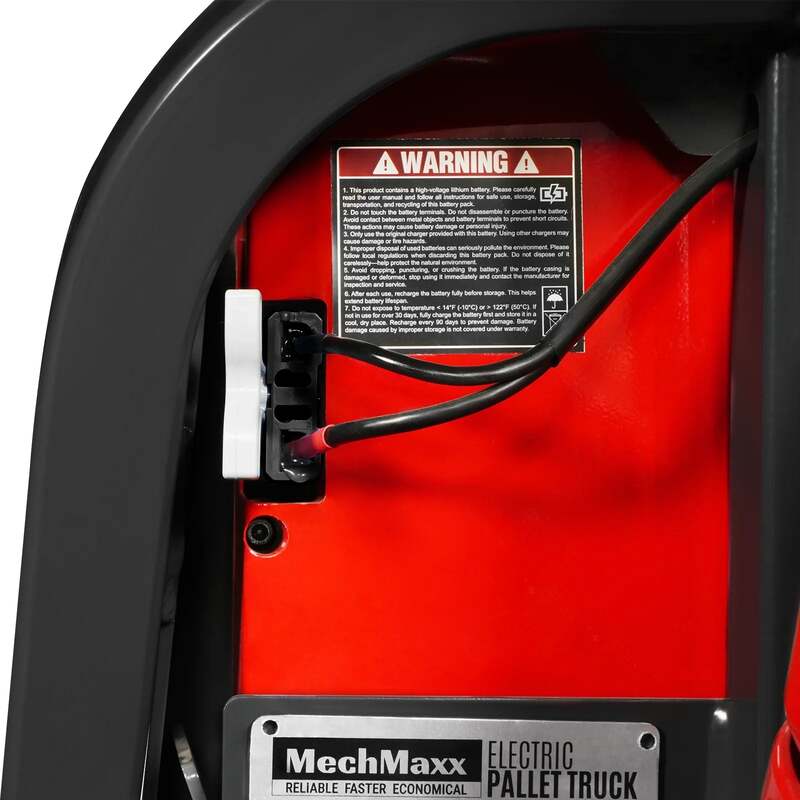

Removable Lithium Battery System

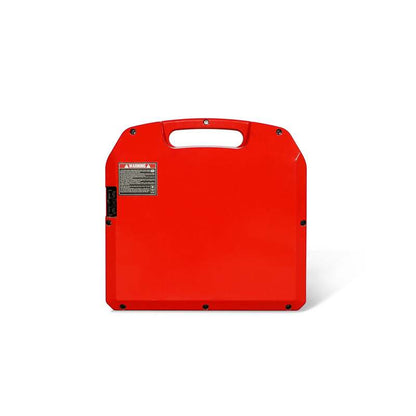

The LPT33 uses a 24V 40Ah lithium-ion battery designed for fast charging and quick replacement.
• Tool-free battery exchange in seconds

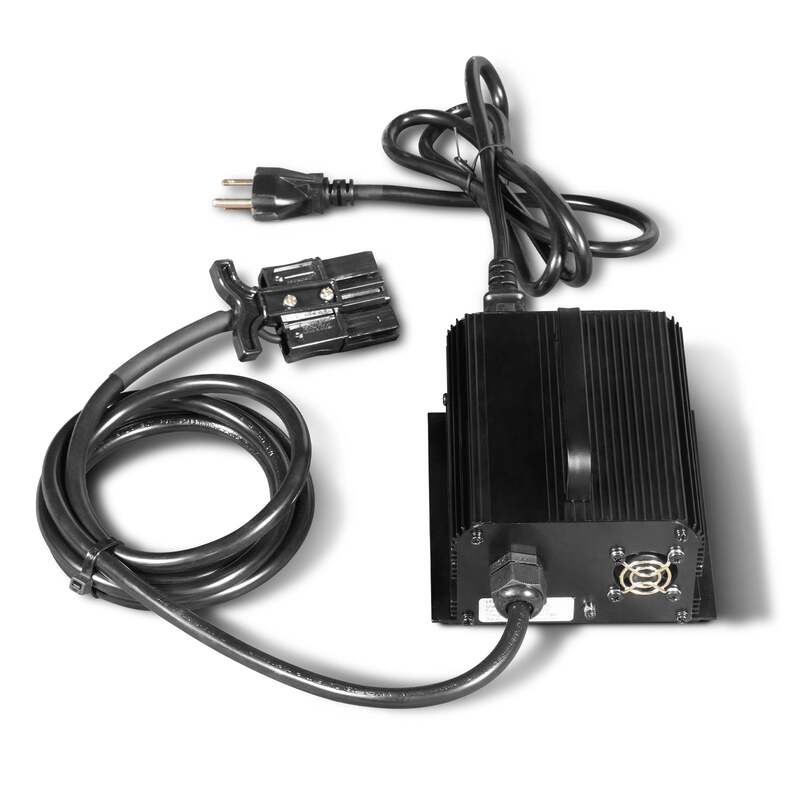

• External 24V/10A charger included
• Reduced downtime during operation
• Optional spare battery available (SKU: 462006)
This battery system allows operations to maintain continuous productivity throughout the workday.
Compact & Operator-Friendly Design
The pallet jack is designed for easy maneuverability and operator comfort in confined spaces.
• 55" turning radius for narrow aisles
• Turtle mode for precise positioning
• Ergonomic handle for left or right-hand operation
• Polyurethane wheels that protect warehouse flooring
• Stability casters to reduce lateral sway
These features allow operators to move loads smoothly and accurately even in crowded warehouse environments.
Enhanced Safety Features
The LPT33 incorporates multiple safety systems to protect operators and cargo.
• Emergency reverse safety button
• Electromagnetic braking system
• Automatic safety-release braking
• Stability casters for improved balance
These safety features help ensure secure operation during daily material handling tasks.
Battery Charging & Maintenance Guidelines
• Always read the product manual before operating the machine
• Fully charge the battery after each use
• Avoid deep discharge and overcharging
• Charge at least once per month during storage
• Store in a cool, dry place away from heat sources
Proper battery maintenance helps extend battery life and ensures safe operation.
Technical Specifications
Load Capacity: 3300 lbs
Operator Type: Walkie
Fork Length: 45.3 in
Fork Width: 27 in
Distance Between Forks: 15 in
Load Center: 23.6 in
Fork Height (Raised): 7.5 in
Fork Height (Lowered): 2.95 in
Turning Radius: 55 in
Travel Speed (Laden / Unladen): 2.6 / 2.8 mph
Gradeability (Laden / Unladen): 5% / 10%
Drive Motor: 0.75 kW DC
Lift Motor: 0.5 kW
Controller: Curtis
Battery: 24V / 40Ah Removable Lithium-ion
Charger: 24V / 10A External Charger
Overall Length: 63 in
Overall Width: 27 in
Overall Height (Handle Raised): 48 in
Packing Size: 68 × 28 × 31 in
Net / Gross Weight: 331 / 441 lbs
